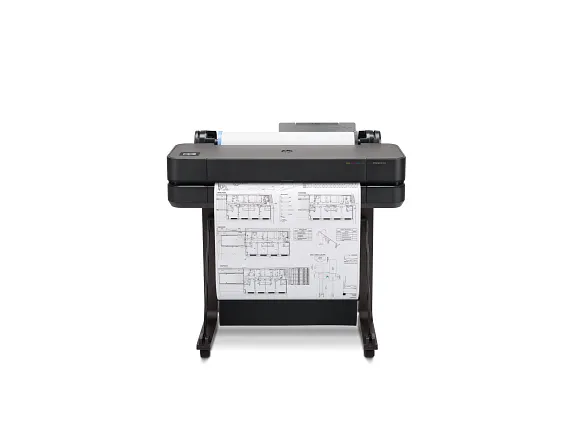

HP DesignJet T630 Large Format Wireless Plotter Printer - 24", with Mobile Printing (5HB09A)

Name: HP DesignJet T630 Large Format Wireless Plotter Printer - 24", with Mobile Printing (5HB09A)
Brand: DesignJet
SKU: 5HB09A#B1K
Price: 1399 USD
Rating: 4.2 (31 reviews)

FunctionsPrint

30 sec/page on D, 76 D prints per hour
Dye-based (C, M, Y); pigment-based (K)
Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter
Compliant with Class B requirements, including: USA (FCC rules)
Dynamic security enabled printerSee all Specs

Can't find what you are looking for?

Earn 1X HP Rewards Points

Protect your Device with an HP Care Pack

1-Year Standard Warranty

Included

HP 2 year Next Business Day Hardware Support for DesignJet T630-24 andT650-24 (AMS/APJ)

HP 3 year Next Business Day Hardware Support for Designjet T630-24 andT650-24 (AMS/APJ)

HP Recommends

Add to compare

Product # 5HB09A#B1K

HP DesignJet T630 Large Format Wireless Plotter Printer - 24", with Mobile Printing (5HB09A)

$0.00

The world's smallest wide-format printer[4] with a built-in stand, is designed to fit your office, budget, and the way you work. Print multi-size projects with ease. Print your A1 plot as fast as 30 seconds. 1 GB memory.
AEC, GIS, and MCAD professionals who want to print maps, technical drawings, posters, and renders with precise, accurate line quality and crisp text
This is affordability without any tradeoffs as the world’s easiest to use large-format printer.[1] Impressive simplicity that helps you stay productive. Cost saving efficiencies like using 95% less ink for routine maintenance.[5] Save time and money.
This printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. A reused HP chip enables the use of reused, remanufactured, and refilled cartridges. More at:
http://www.hp.com/learn/ds
More sustainable design reduces CO2e up to 7.3 tons/year by units sold by using up to 30% UL Validated recycled plastic.; Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; FSC®-certified papers and a range of recyclable HP media with a take-back program; ENERGY STAR® certified; EPEAT® registered

Extreme simplicity

Print multi-size A3/B and A1/D or A0/E projects automatically, without manually switching the media source.Save time with the world's easiest job submission[2]—send multiple files in one click with HP Click.[3]Print with confidence you'll get the results you expect with an intuitive driver and true print preview.

Fits your office and budget

Save space with the world's smallest plotters[4] designed to fit your office, including a built-in stand.Use up to 95% less ink for routine maintenance vs competitor and get up to 100 extra A1/D pages per month.[5]More sustainable design reduces CO2e up to 7.3 tons/year by units sold by using up to 30% recycled plastic.[6]

Fits the way you work

Avoid waiting by the printer with high-speed printing as fast as 30 seconds per A1/D plot.Be more productive—save time from job prep to final print by printing your projects up to 2X faster.[2]Print your jobs and manage your plotter from virtually anywhere, anytime with the HP Smart app.Get high-quality results—HP Bright Office Inks plot up to 31% more line accuracy and up to 65% more gamut.[7]

RECOMMENDED SUPPLIES & SUPPORT

Technical details

HP DesignJet T630 Printer series

Functions

Print speed, maximum

30 sec/page on D, 76 D prints per hour[1]

Resolution (color)

Up to 2400 x 1200 optimized dpi

Print Technology

HP Thermal Inkjet

Number of print cartridges

4 (C, M, Y, K)

Product disclaimer

This printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. A reused HP chip enables the use of reused, remanufactured, and refilled cartridges. More at:http://www.hp.com/learn/ds

Compatible ink types

Dye-based (C, M, Y); pigment-based (K)

Print languages

HP-GL/2, HP-RTL, CALS G4, JPEG, URF

Connectivity, standard

Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct

Memory, standard

1 GB

Hard disk

None

Non-printable area (cut-sheet)

0.2 x 0.2 x 0.2 x 0.7 in (manual feed); 0.2 x 0.2 x 0.2 x 0.2 in (input tray)

Line accuracy

±0.1%[3]

Maximum optical density (black)

8 L* min/2.10 D[4]

Finished output handling

Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter

Media sizes supported

Auto sheet feeder: A, B; manual feed: A, B, C, D

Media sizes supported

Auto sheet feeder: A4, A3; manual feed: A4, A3, A2, A1

Media sizes, custom

Auto sheet feeder: 8.3 x 11 to 13 x 19 in; manual feed: 8.3 x 11 to 24 x 74.7 in

Media types

Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)

Media sizes, standard

11 to 24 in

Roll external diameter

3.9 in

Media thickness

Up to 11.8 mil

Power

Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max. Not dual voltage, power supply varies by part number with # Option code identifier.

Power consumption

<35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)

Operating temperature range

41 to 104ºF

Warranty

One-year limited hardware warranty

Software included

HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant

Dimensions (W X D X H)

39.9 x 23.8 x 36.7 in

Weight

63.7 lb

Package weight

82.5 lb

What's in the box

HP DesignJet T630 24-in Printer, printer stand, automatic sheet feeder, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord

Sustainability Impact

More sustainable design reduces CO2e up to 7.3 tons/year by units sold by using up to 30% UL Validated recycled plastic.; Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; FSC®-certified papers and a range of recyclable HP media with a take-back program; ENERGY STAR® certified; EPEAT® registered

Recommended Media

Q1396A HP Universal Bond Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 45.7 m (24 in x 150 ft);C6019B HP Coated Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 45.7 m (24 in x 150 ft);C6029C HP Heavyweight Coated Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 30.5 m (24 in x 100 ft)

Dynamic security

Dynamic security enabled printerCertain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.

Special offers

FREE Storewide Shipping

This product can only be shipped via FedEx Freight Economy. Please expect a 3-6 day delivery schedule (could be longer for AK/HI). Due to the size of the product, it cannot be returned.

Winter Savings

Hurry, these deals end soon. FREE shipping storewide.

Save $100 instantly

HP DesignJet T630 Large Format Wireless Plotter Printer - 24", with Mobile Printing (5HB09A) is rated 4.2 out of 5 by 30.

Rated 5 out of 5 by CMeaghs from Design Jet Purchase Should have bought one years ago. Easy to assemble and get it going! Doing all my architectural drawings in-house now.

Date published: 2022-05-07

Rated 5 out of 5 by DanV from Awesome Printer is fast with crisp, clear drawings. Quiet when printing

Date published: 2022-03-28

Rated 5 out of 5 by Willy_ch from HP DesignJet T630-24 Fast, quiet with good quality drawing, fit our work, much better than the old plotter we used.

Date published: 2021-11-03

Rated 5 out of 5 by David056 from HO DesignJet T630 Works great in our office. Small space requirement. Used solely for house plans. No complaints!

Date published: 2021-09-10

Rated 5 out of 5 by Hanas Electrical Services from T630 LARGE FORMAT This printer looks and works great - nice modern design, the stand and print catching basket are a perfect add-on. Print quality is great as well - perfect for small businesses that need to print their own design drawings.

Date published: 2021-06-20

Rated 5 out of 5 by Lennox from Why did I wait so long? Works perfect! Setup took a little while, but the paper went in pretty easy, and the rolls are very stable once installed. Perfect for our construction and design firm! Just finishing our second roll and so far it is just what we need!

Date published: 2021-04-14

Rated 5 out of 5 by Cornerstone Environmental from No cartridge to be found. The printer is excellent so far, but can't find extra HP cartridges for the printer.

Date published: 2020-12-09

Rated 5 out of 5 by uriabq from Undeniable Without a doubt have been using HP since well forever. The hard part is always letting go of my previous HP plotter because some new update in windows will not let me use. But always buy HP, and from HP, best plotters for Design and Construction industry.

Date published: 2020-10-25

HP DesignJet T630 Large Format Wireless Plotter Printer - 24", with Mobile Printing (5HB09A) Reviews - page 2

Is a paper roll spindle included?

Asked by: Bobolouie

Hello. Thanks for your question. Yes, the spindle is included with this HP DesignJet T630 24-in Printer.

Answered by: HP Live Expert Cheri

Date published: 2022-12-08

will this machine use designjet 711 ink cartridges?

Asked by: cmorgan

Hello. Thanks for your question. This HP DesignJet T630 24-in Printer uses the HP 712 ink cartridges.

Answered by: HP Live Expert Cheri

Date published: 2022-11-24

Will this printer plot .DWG files from Autocad?

Asked by: Kevinhamby

Thank you for your question! Yes, the HP DesignJet T630 Large Format Wireless Plotter Printer is compatible with AutoCAD files.

Answered by: HP Team Grant

Date published: 2022-10-21

is this compatible with Apple?

Asked by: eskibibo

Thank you for your question! This HP DesignJet T630 Large Format Wireless Plotter Printer will be compatible with macOS and iOS devices by using the free HP Smart App on your mobile device.

Answered by: HP Team Grant

Date published: 2022-09-05

Doe this print on vinyl ? When printing on paper to make a poster, does it cut the poster off the roll after printing ?

Asked by: Vinyl and poster question

Return and exchange information

HP.com will not accept returns due to the product’s size.
