HP DesignJet T1600 36-in PostScript Printer

Special Offers

FREE Storewide Shipping

Learn more

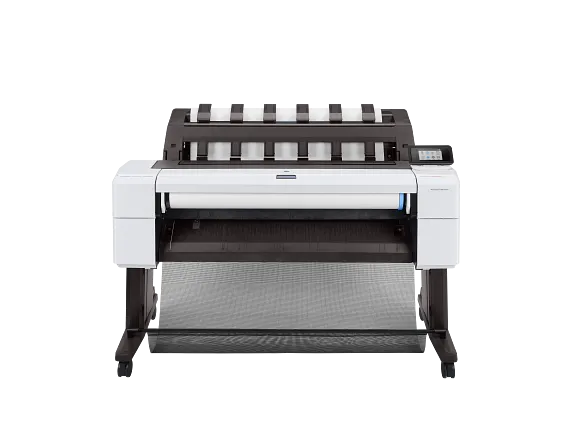

HP DesignJet T1600 36-in PostScript Printer

FunctionsPrint
  • 180 D/hr, 19.3 sec/D (180 A1/hr, 19.3 sec/A1 )
  • Dye-based (C, M, Y, pK, G); pigment-based (mK)
  • Sheet feed, front-loading roll feed, 100 page output stacker, media bin, automatic horizontal cutter
  • Compliant with Class B requirements, including: USA (FCC rules)
  • Dynamic security enabled printerSee all Specs
Product # 3EK11A#B1K

HP DesignJet T1600 36-in PostScript Printer

Keep the project momentum. With radically simple solutions and the easiest PDF printing[1], it's easy for everyone to get great results every time. Meet deadlines with the fastest print speed in the most compact, quiet printer.[2]
AEC, GIS, and MCAD professionals who want to print maps, technical drawings, posters, and renders with precise, accurate line quality and crisp text
Support the work of your teams and their projects, and accelerate progress at every stage. Experience unprecedented simplicity, and the easiest PDF printing.[1] And stay in control with the world’s most secure large-format printer.[4]
This printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. A reused HP chip enables the use of reused, remanufactured, and refilled cartridges. More at:
http://www.hp.com/learn/ds

EXPERIENCE SIMPLICITY—At the high-end

Adopt a smart workstyle with easy PDF printing using HP Click software. [1]Empower your workforce. Easily print and share jobs from the cloud with your mobile device and HP Smart app.Fits your workplace with the most compact footprint and most quiet operation, with up to 87% less noise.[2]

UNLEASH PERFORMANCE—To turn design into delivery

Showcase design versatility from precise line drafts to boldly colored 3D renders, with HP Bright Office Inks.Provide the highest accuracy and display the finest details with the unique Adobe PDF Print Engine.[3]Meet deadlines with the fastest speed up to 180 D/hr.[2]Cut out unproductive tasks with integrated automatic print stacking, up to 100 pages.

SECURE—World's most secure large-format printer[4]

Rely on the best network protection with features like HP Secure Boot and whitelisting.[4]Control who accesses the printer and its confidential documents with secure user authentication.Keep your fleet secure at any time with HP JetAdvantage Security Manager.

RECOMMENDED SUPPLIES & SUPPORT

Technical details

HP DesignJet T1600 Printer series

Functions

Print

Print speed, maximum

180 D/hr, 19.3 sec/D[1]

Resolution (color)

Up to 2400 x 1200 optimized dpi

Print Technology

HP Thermal Inkjet

Number of print cartridges

6 (C, M, Y, G, pK, mK)

Product disclaimer

This printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. A reused HP chip enables the use of reused, remanufactured, and refilled cartridges. More at:http://www.hp.com/learn/ds

Compatible ink types

Dye-based (C, M, Y, pK, G); pigment-based (mK)

Print languages

Adobe PostScript 3, Adobe PDF 1.7, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4

Mobile Printing Capability

Direct print from mobile apps on iOS, Android, and Chrome OS; email printing with HP ePrint and HP Smart app for iOS and Android

Connectivity, standard

Gigabit Ethernet (1000Base-T), Wi-Fi (with optional Jetdirect accessory), supporting the following standards: TCP/IP, BootP/DHCP (IPv4 only), DHCPv6, TFTP (IPv4 only), SNMP (v1, v2c, v3), Apple Bonjour Compatible, WS Discovery, Embedded Web Server (HTTP, HTTPS), IPsec, SMTP (email), Raw IP printing (9100), LPD, IPP, WS print, NTLM v2, SMBv3, SSL/TLS, 802.1X authentication (LEAP, PEAP, EAP-TLS), DFS

Network ready

Standard

Memory, standard

128 GB (file processing)[4]

Hard disk

500 GB self-encrypting removeable

Non-printable area (cut-sheet)

0.12 x 0.87 x 0.12 x 0.12 in

Line accuracy

±0.1%[2]

Finished output handling

Sheet feed, automatic front-loading roll feed, integrated output stacker[3], media bin, automatic horizontal cutter

Media sizes supported

A, B, C, D, E

Media sizes supported

A4, A3, A2, A1, A0

Media sizes, custom

8.3 x 11 to 36 x 48 in

Media types

Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, colored), technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor paper, polypropylene, vinyl)

Media sizes, standard

11 to 36 in

Roll external diameter

5.5 in

Media thickness

Up to 19.7 mil

Power

Input voltage (auto ranging) 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A max

Power consumption

100 W (printing); <36 W (ready); <10 W (sleep); 0.3 W (off)

Operating temperature range

41 to 95ºF

Warranty

One-year limited hardware warranty

Software included

HP Click, HP mobile, ePrint and iOS/Android support plus the HP Smart app for mobile, HP Web Jetadmin, HP JetAdvantage Security Manager, HP SmartTracker (optional)

Dimensions (W X D X H)

55 x 30 x 43 in

Weight

181 lb

Package weight

249 lb

What's in the box

HP DesignJet T1600 Printer, printer stand and media bin, spindle, printheads, introductory ink cartridges, user guide, power cords

Recommended Media

C6810A HP Bright White Inkjet Paper (FSC® certified)[5] (recyclable)[6] 914 mm x 91.4 m (36 in x 300 ft); C6980A HP Coated Paper (PEFC™ certified)[5] (recyclable)[6] 914 mm x 91.4 m (36 in x 300 ft); L5C80A HP Universal Heavyweight Coated Paper, 3-in Core (FSC® certified)[5] (recyclable)[6] 914 mm x 91.4 m (36 in x 300 ft); D9R28A HP Everyday Matte Polypropylene, 3-in Core 914 mm x 61 m (36 in x 200 ft)

Dynamic security

Dynamic security enabled printerCertain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.
