  • Color
  • Print
  • Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11
  • Ink
  • Three-years limited hardware warranty

Contains:

MRP RM15,269.00

As low as RM11,880.00

You Save: RM3,389.00 (22%)
Free Delivery
Interest Free Available
Delivery

Check availability at

Delivery estimate to is:
Out of stock
Standard Delivery charge: Free
0% INTEREST FREE Installment Plan available
With 3 Year Support & 1 Set of Ink Cartridge
Design meets performance in the world's easiest large-format plotters[1]

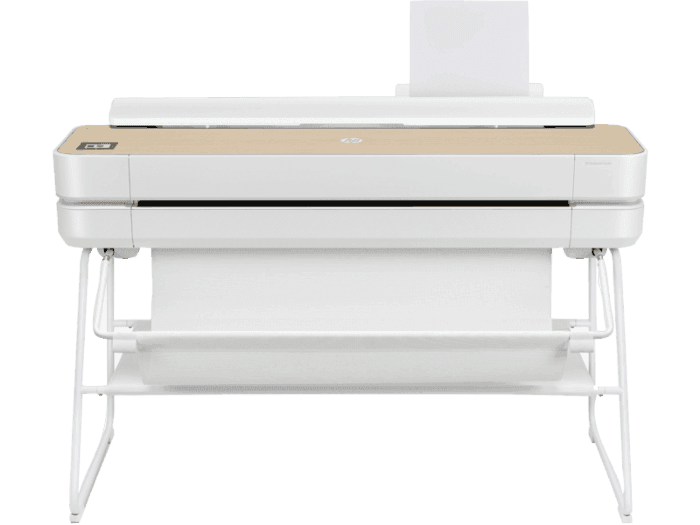

HP DesignJet Studio 36-inch Wood Large Format Plotter Printer (up to A0 size) with Mobile Printing

Out of stock

SKU
5HB14A-1

Design meets
performance

HP DesignJet Studio 36-inch Wood Large Format Plotter Printer (up to A0 size) with Mobile Printing
  • 36-inch Large Format up to A0 CAD Plotter Printer with Mobile Printing
  • Print only
  • Print speed up to 25 sec/page on A1, 82 A1 prints per hour
  • USB, Ethernet, Wi-Fi

World's easiest large-format plotters1

Easy to use with an intuitive driver
and true print preview.

World's easiest large-format plotters

HP Click software2

Send multiple files for prints in one click.

HP Click software

Print multi-size A3/B, A1/D and A0/E

Without manually switching the media source.

Print multi-size A3/B, A1/D and A0/E

First net carbon neutral
DesignJet plotter3

Reducing the carbon footprint of printing

Reducing the carbon footprint of printing

High-speed printing

As fast as 25 seconds per A1/D plot.

High-speed printing

HP Bright Office Inks

Up to 31% more line accuracy
and up to 65% more gamut4.

HP Bright Office Inks

HP Smart app

Print your jobs and manage your plotter
from virtually anywhere.

HP Smart app

Product Walkaround

Product Walkaround

Product Build

Product Build
  1. The HP DesignJet Studio Printer series and the HP DesignJet T600 Printer series are the only solutions providing seamless printing of both large- and small-format sheets automatically in a multi-size print basket compared to competitive alternatives with comparable size and features as of January, 2020.
  2. One-click printing with HP Click software. Applicable to PDF, JPEG, TIFF, DWF, and HP-GL/2 files.
  3. HP is reducing the carbon footprint of printing through carbon reduction initiatives such as energy efficiency, reduced packaging, and use of recycled plastics. The HP DesignJet Studio Printer is the first HP DesignJet where HP has offset the remaining carbon impact due to raw material extraction and processing, printer manufacturing and transportation, as well as electricity, paper, and cartridge use in accordance with The CarbonNeutral Protocol https://www.carbonneutral.com/how/carbonneutral-protocol.
  4. Up to 31% more line accuracy based on HP internal testing, September 2019 of 1 pixel vertical line straightness comparing prints from the HP DesignJet Studio Printer series and Canon TM-305 Printer on plain paper using equivalent fast/draft print modes. Up to 65% more color gamut based on HP internal testing, September 2019, of gamut volume comparing prints from the HP DesignJet Studio Printer series and Canon TM-305 Printer on Oce 75gsm plain paper using equivalent fast/draft print modes.

Designed to fit the way you live, this plotter provides design that performs, in technology that stands out in the first net carbon neutral HP DesignJet plotter.[3] Easily set it up using your smartphone.

Design that performs, technology that stands out.

Print multi-size A3/B and A0/E projects automatically, without manually switching the media source. Save time with the world's easiest job submission.[2] And print with confidence you'll get the results you expect.

Print multi-size A3/B and A0/E projects automatically, without manually switching the media source.

Avoid waiting with high-speed printing as fast as 25 sec per A1/D plot. Save time from job prep to final print. Print, and manage your plotter, from virtually anywhere, anytime with the HP Smart app. Get quality results with HP Bright Office Inks.

Avoid waiting by the printer with high-speed printing as fast as 25 seconds per A1/D plot.

Dynamic security enabled printer. Only intended to be used with cartridges using an HP original chip. Cartridges using a non-HP chip may not work, and those that work today may not work in the future.

More at:http://www.hp.com/go/learnaboutsupplies

  • 36-inch Large Format up to A0 CAD Plotter Printer with Mobile Printing
  • Print only
  • Print speed up to 25 sec/page on A1, 82 A1 prints per hour
  • USB, Ethernet, Wi-Fi
What's in the box
  • HP DesignJet Studio 36-in Printer, printer stand, automatic sheet feeder, roll cover, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord
Specifications
More Information
Product number 5HB14A
Functions Print
Print specifications
Print technology HP Thermal Inkjet
Print languages HP-GL/2, HP-RTL, CALS G4, JPEG, URF
Model size 914 mm
Theoretical minimum line width 0.02 mm
Line accuracy ±0.1%[3]
Print speed 25 sec/page on A1, 82 A1 prints per hour[1]
Maximum optical density (black) 8 L* min/2.10 D[4]
Print quality color (best) Up to 2400 x 1200 optimized dpi
Non-printable area (cut-sheet) 5 x 5 x 5 x 5 mm
Non-printable area (roll media) 5 x 5 x 5 x 5 mm
Printer drivers included Raster driver for Windows and macOS
Internal Storage None
Memory 1 GB
Connectivity and Communications
Connectivity, standard Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11, Supports gigabit ethernet and wifi connectivity
Power
Power Consumption Description <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)
Power Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max
Cartridges and Printheads
Number of print cartridges 4 (C, M, Y, K)
Print cartridge volume delivered 80 ml (K); 38 ml (K); 29 ml (C, M, Y)
Print heads 1 (cyan, magenta, yellow, black)
Print head nozzles 1376
Ink drop 5.5 pl (C, M, Y); 12 pl (K)
Ink types Dye-based (C, M, Y); pigment-based (K)
Supported Printing Media
Finished output handling Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter
Media types Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)
Media sizes supported Auto sheet feeder: A4, A3; manual feed: A4, A3, A2, A1, A0
Media sizes, custom Auto sheet feeder: 210 x 279 to 330 x 482 mm; manual feed: 210 x 279 to 914 x 1897 mm
Media sizes standard (metric rolls) 279 to 914 mm
Media width, maximum 914 mm
Media weight, recommended 60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (auto sheet feeder)
Media thickness Up to 11.8 mil
Roll external diameter 100 mm
Roll maximum input 1
Roll maximum weight 6.2 kg
Recommended media [5] BMG trademark license code FSC®-C115319, see http://www.fsc.org. HP trademark license code FSC®-C017543, see http://www.fsc.org.
Supported Primary Applications CAD rendering, Accurate line drawings for architects, Wide format printing, Construction blueprint printing
Environmental
Operating temperature range 5 to 40ºC
Storage temperature range -25 to 55ºC
Operating humidity range 20 to 80% RH
Non-Operating Humidity Range 0 to 95% RH
Acoustic power emissions 5.8 B(A) (operating), <3.4 B(A) (idle)
Acoustic pressure emissions 42 dB(A) (operating), <16 dB(A) (idle)
Dimensions and Weight
Dimensions without stand (W x D x H) 1317 x 555 x 932 mm
Package dimensions (W x D x H) 1470 x 575 x 646 mm
Weight 41.7 kg
Package weight 62 kg
Box contents
What's in the box HP DesignJet Studio 36-in Printer, printer stand, automatic sheet feeder, roll cover, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord
Software included HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant
Warranty
Warranty Three-years limited hardware warranty
Certification and Compliance
ENERGY STAR® certified Yes
Electromagnetic Emission Standard Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class B product: Korea (KCC)
Environmental Certifications ENERGY STAR; WEEE; EU RoHS; EAEU RoHS; REACH; ErP
Safety Approvals and Requirements USA and Canada (CSA certified); EU (LVD, EN 60950-1 and EN 62368-1 compliant); Russia, Belarus, Khazakstan (EAC); Ukraine (UA); Singapore (PSB); China (CCC); Argentina (IRAM); India (BIS); Mexico (NYCE)
Other
Web address for additional information http://www.hp.com/go/designjetstudio
Accessories B3Q37A HP DesignJet 36-in Spindle
Services (Care Pack) UD5M4E HP 2 year NBD Onsite Support;UD5M5E HP 3 year NBD Onsite Support;UD5M6E HP 4 year NBD Onsite Support;UD5M7E HP 5 year NBD Onsite Support;UD5M8PE HP 1 year Post Warranty NBD Onsite Support;UD5M9PE HP 2 year Post Warranty NBD Onsite Support
